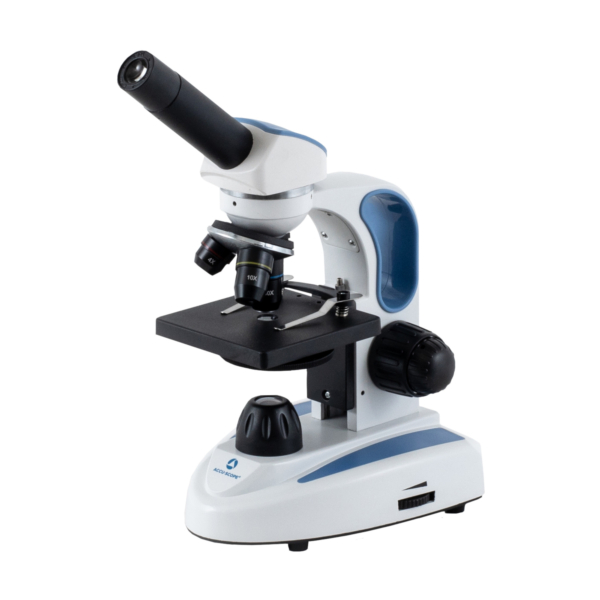

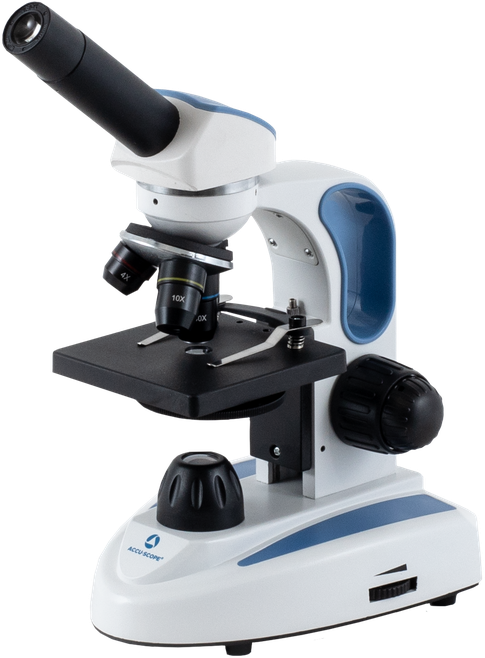

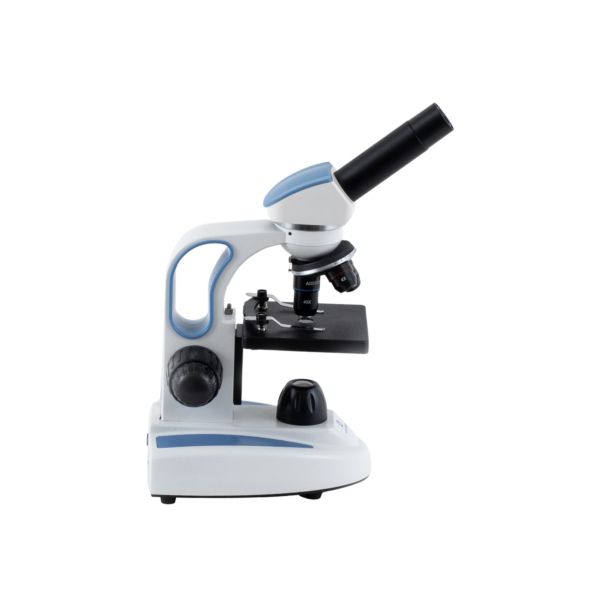

EXM-50

EXM-50

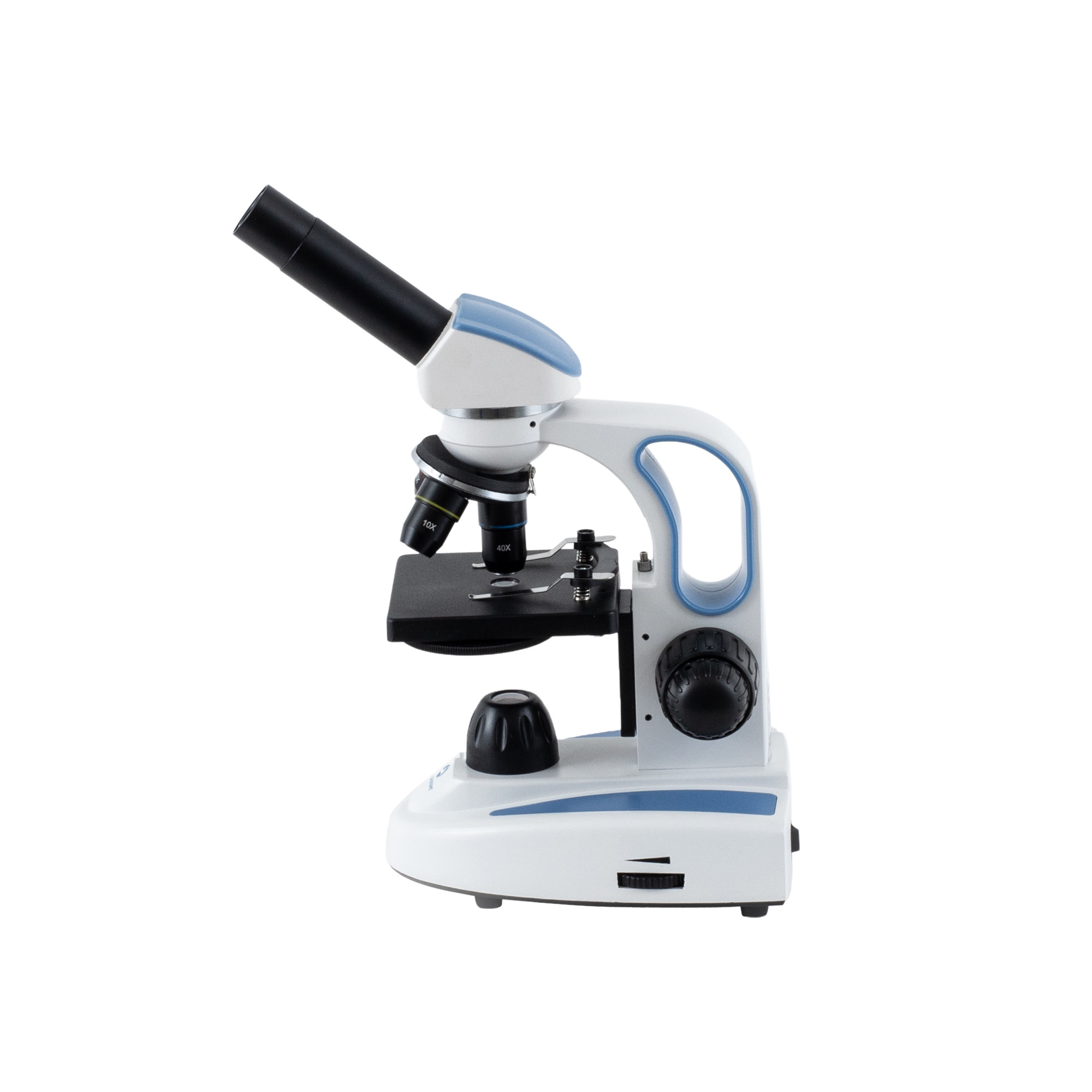

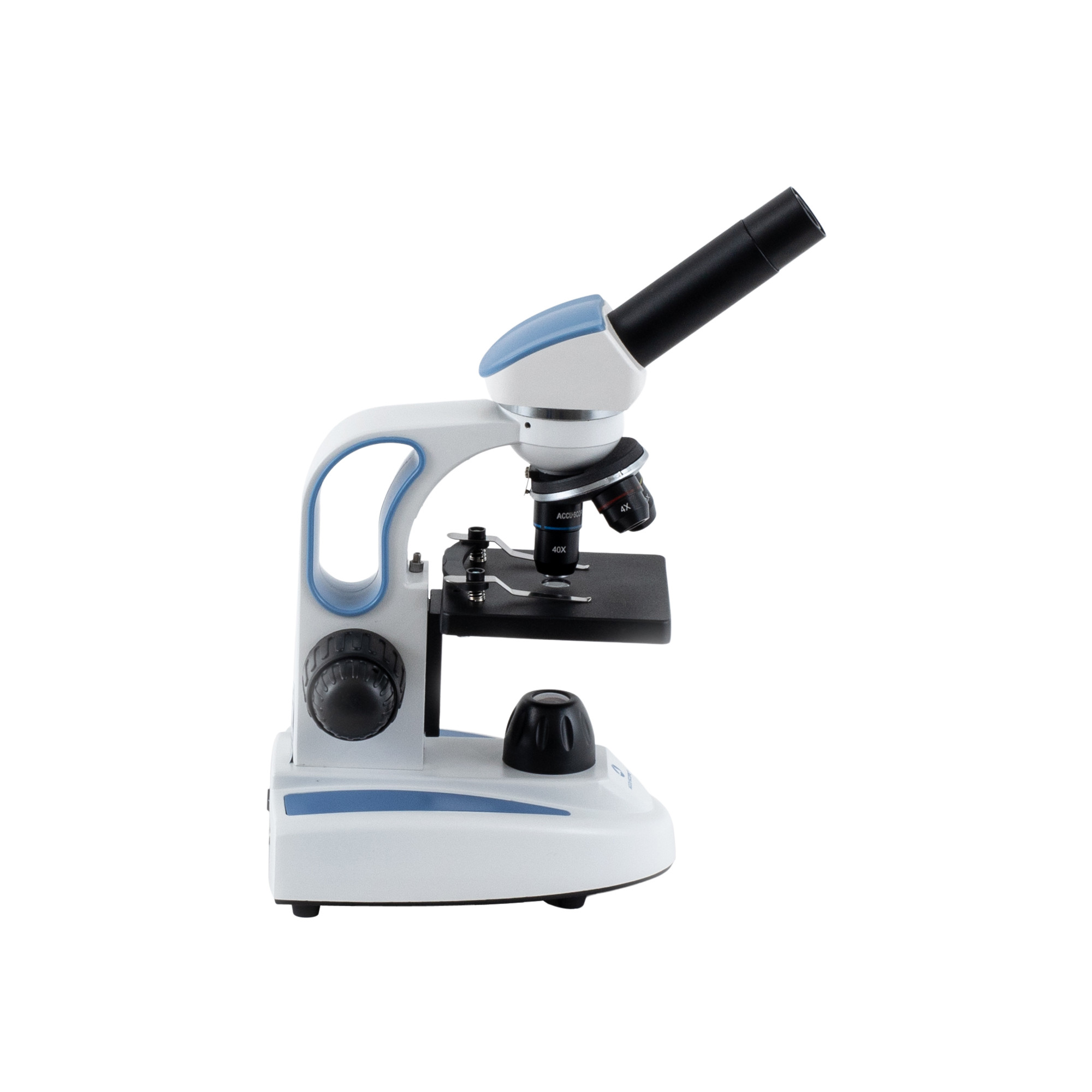

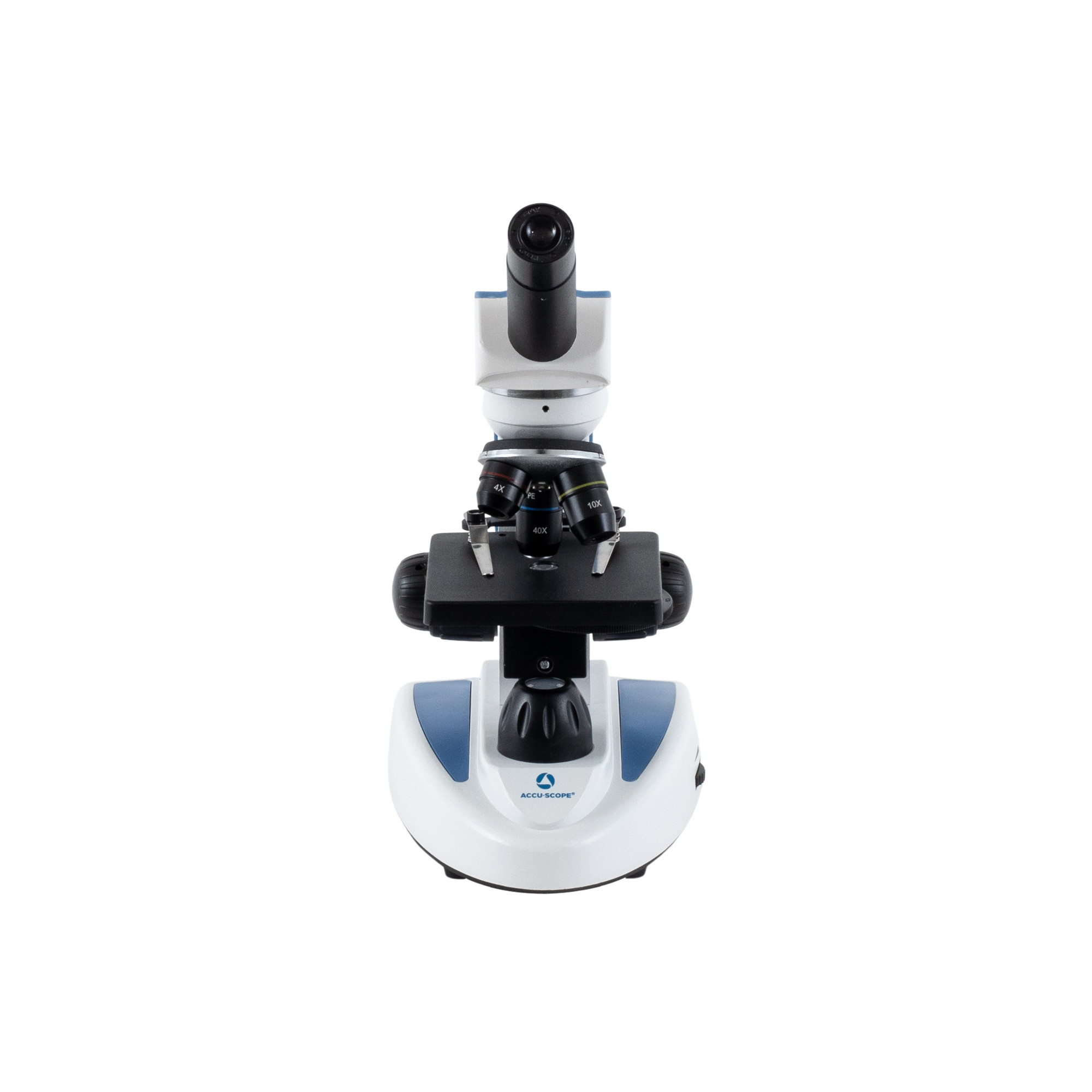

The EXM-50 is a reliable and sturdy microscope, perfect for educational environments. Its compact design, built-in LED illumination, and carry handle make it easy to set up, use, and store. Student-friendly and designed to foster scientific curiosity, the EXM-50 is an excellent tool for encouraging exploration and learning.



KEY FEATURES

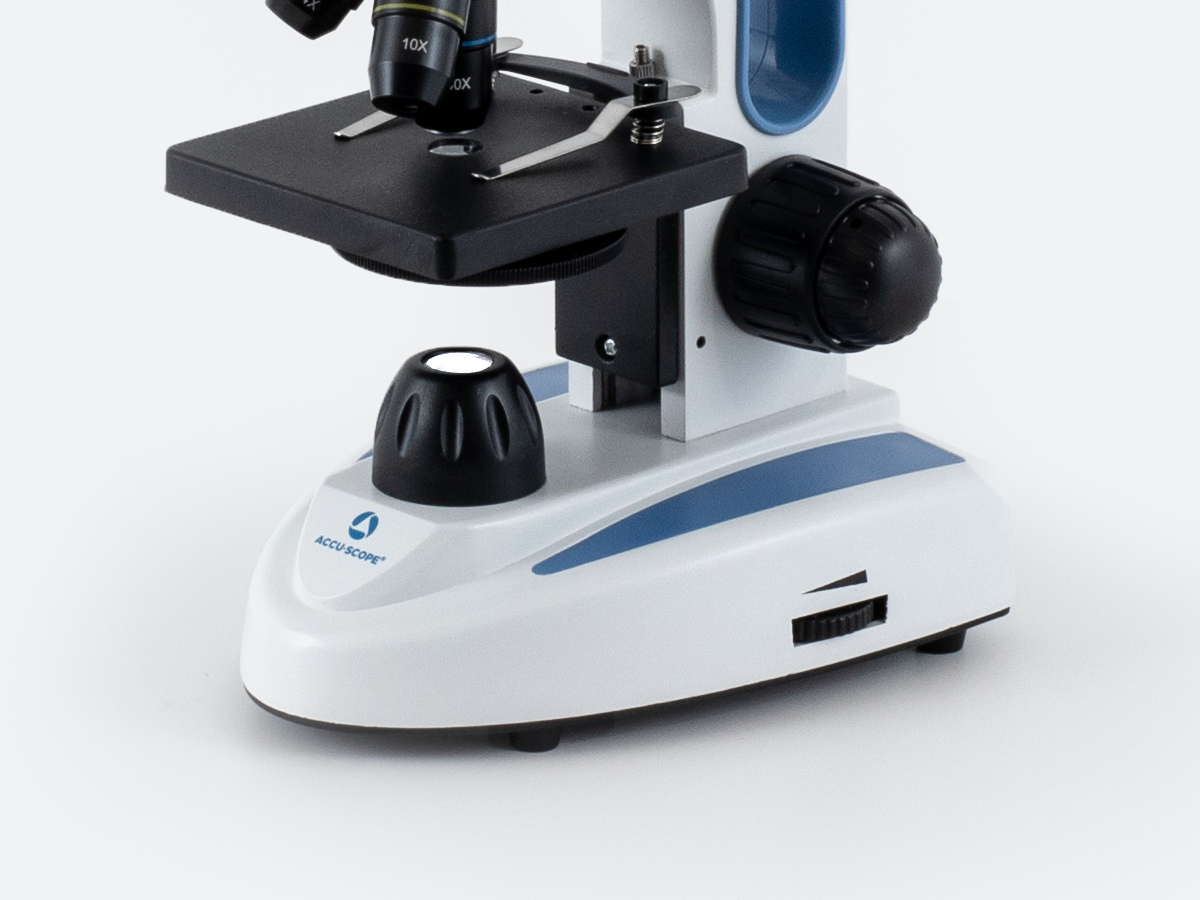

LED Illumination – Take It Where You Want To Go

The EXM-50 features an economical LED illumination system allowing both corded and cordless operation.  For cordless operation, simply insert AA alkaline batteries (included) into the battery compartment on the bottom of the microscope.

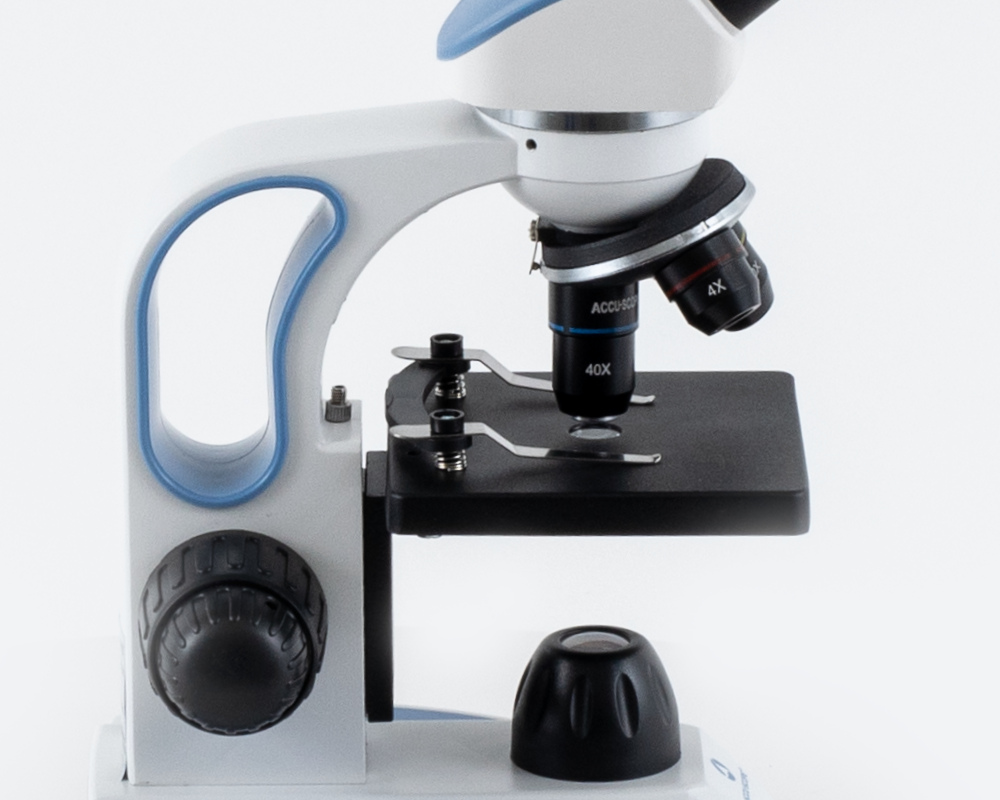

Flat Stage with Easy Load Stage Clips

Load and unload slides quickly with our Easy Load stage clips.  Simply press down the bar that connects the slide clips to raise them for easy placement or removal of slides, and positioning slides is so much easier. No more struggling with the old-style stage clips.

Fast Setup and Storage

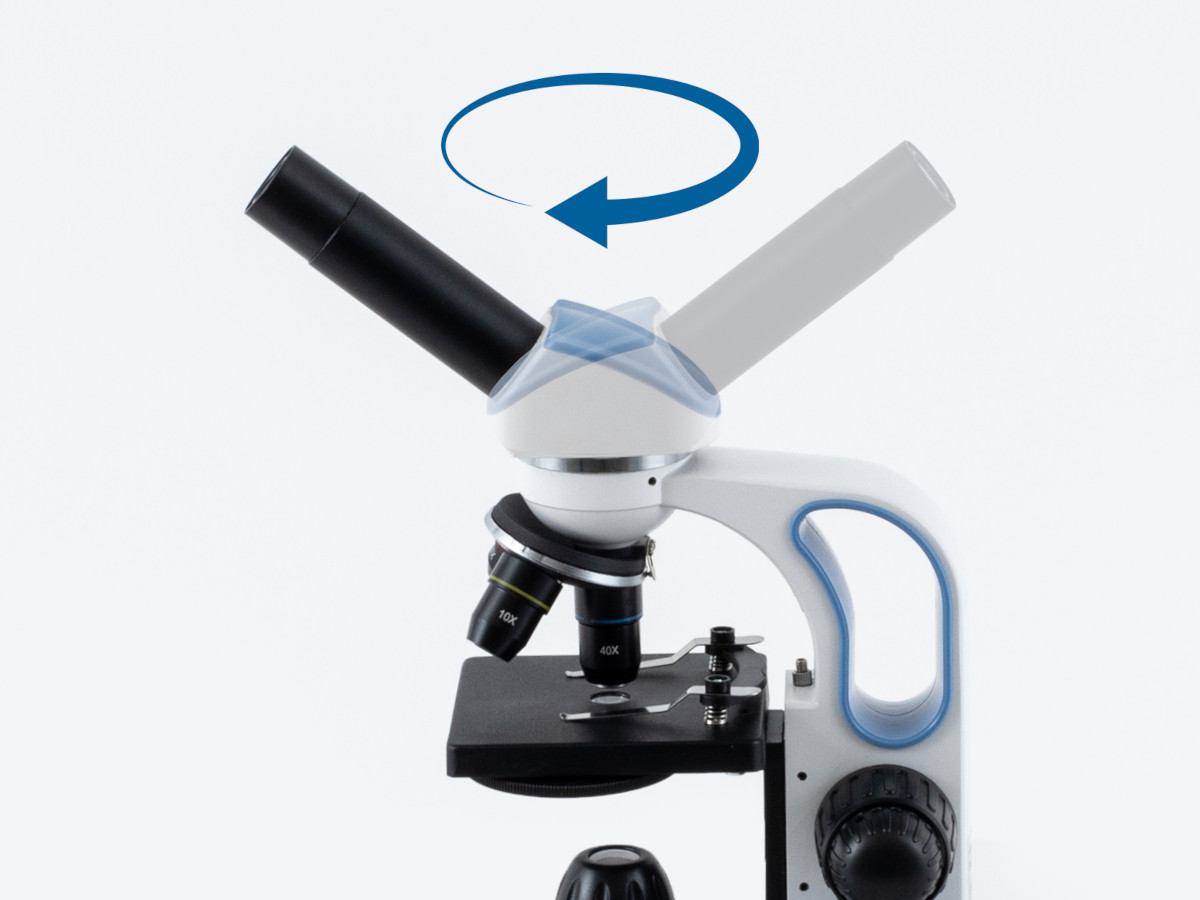

The EXM-50 is super portable thanks to its integrated carrying handle making it easier than ever for students and teachers to move the microscope around the classroom.  The viewing head is rotatable 360° making the EXM-50 easy to store, too.


Specifications
Viewing Head
Monocular, inclined 45°, rotatable 360°
Optical System
DIN Optical System, f = 160mm
Objectives
DIN Achromat 4x, 10x, 40x* objectives (* spring loaded)
Eyepiece
WF10x eyepiece, 16mm field of view, with pointer
Nosepiece
Front-facing, 3-position nosepiece with positive click stops to ensure objective alignment
Focusing System
Coaxial coarse and fine focus, focus tension adjustment; focus travel stop
Stage
119mm x 119mm stage with Easy Load stage clips
Condenser
N.A. 0.65 condenser with a six aperture disc
Illumination
Variable LED illuminator; install AA batteries (requires 3; included) for cordless operation
Stand
Cast aluminum alloy with built-in carry handle
Power
Input: 100-240VAC, 0.4A; Output: 5V/1000mA
Accessories
Instruction manual, dust cover
Warranty
5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
