INFINITY8 Cameras

INFINITY8 Cameras

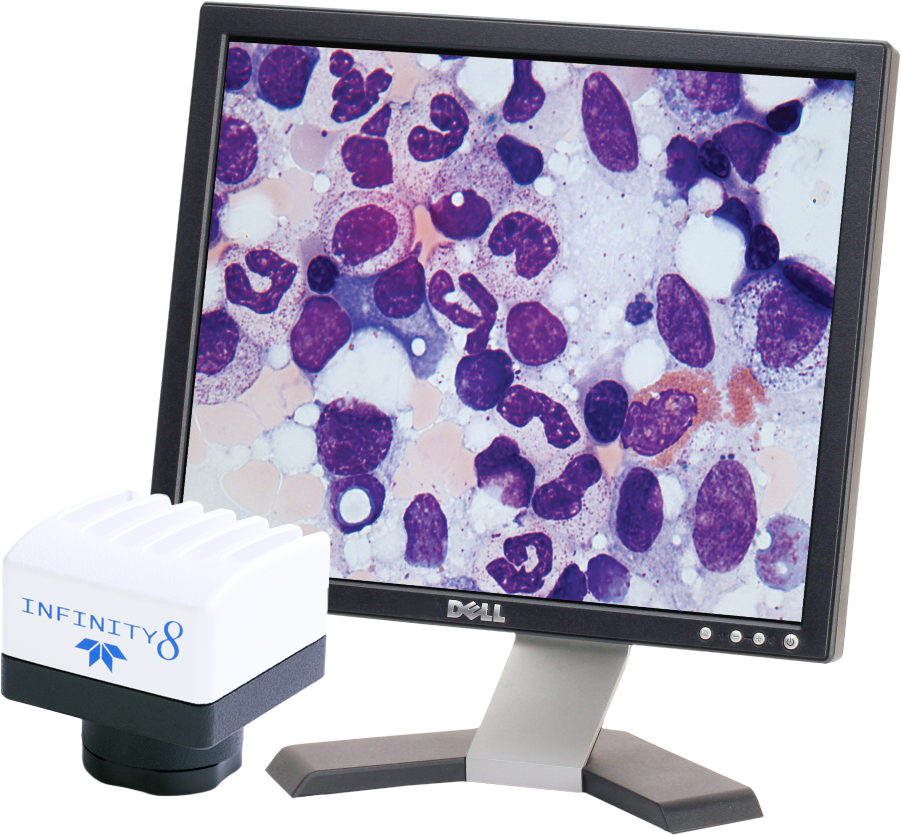

Teledyne Lumenera’s INFINITY8 Microscope Camera Series range in resolution from 2MP to 20MP using the latest in advanced CMOS sensor technology for a wide range of imaging applications from low cost fluorescence imaging to ultra high-resolution stereo microscopy. These cameras are designed to provide both performance and value in today’s climate of increasingly constrained lab budgets.

INFINITY8 cameras deliver high performance in  both monochrome and vivid color imaging for a wide range of applications.



KEY FEATURES


Design

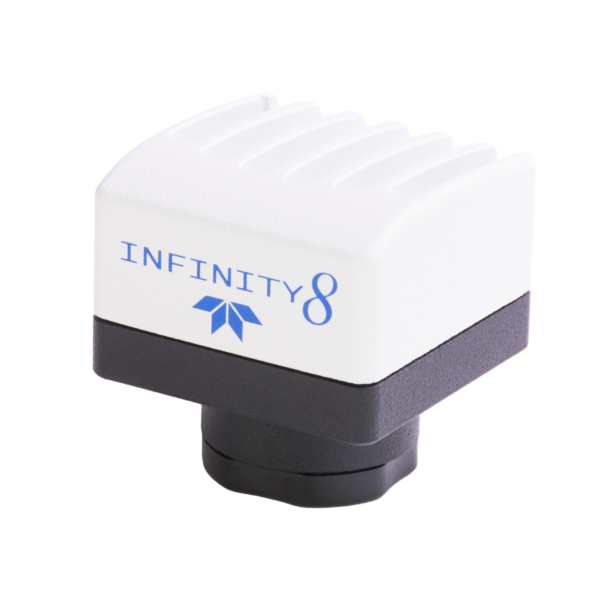

INFINITY8 microscopy cameras have a sleek new camera body with a heat-dissipating design to reduce noise without the need for expensive cooling or fans. The sensors selected for the new INFINITY8 camera series rival legacy CCD cameras at a fraction of the price.

High-Performance

The INFINITY8 series offers several models for microscopy. Providing exceptional low light sensitivity for routine fluorescence, brightfield, darkfield, high-resolution, and high-speed imaging. With both color and monochrome models available. All color models include an IR-cut off filter for higher color fidelity.

Versatility

The INFINITY8 cameras range from monochrome for cost-effective fluorescence imaging to ultra high-resolution color for stereo microscopy – and are compatible with all C-mount microscope brands. Breathe life into your existing microscope by adding a new camera to save time and improve workflow.

INFINITY ANALYZE Included!

Your Lumenera camera includes INFINITY ANALYZE, a full image analysis package offering camera control, measurement, annotation, tiling and post capture enhancement.  INFINITY CAPTURE, a lightweight and intuitive image capture program is also available. Camera and software combine to create a complete microscopy imaging solution for your application.  Download the latest version of INFINITY ANALYZE from https://www.lumenera.com/support/microscopy/drivers-downloads.html


INFINITY8 Microscopy Cameras (COMMON TO ALL INFINITY8 MODELS)
Camera Interface
USB3.1 (5Gbit/s)
Exposure Control
Manual and automatic control
Data Format
8 or 12-bit
I/O Ports
Support for input trigger and strobe out
Image Buffer
128 MB
Lens Mount
C mount
Size (L x H x W)
41.5 mm (max) x 45 mm x 45 mm
Mass
108 g
Operating Temp
0 to 50º C
Power Supply
5V via Power Over USB3 Cable
Power Dissipation
2.3 W to 3.6 W
Data Connector
USB3 Type micro-B (Locking Connector supported)
I/O Connector
JST# SM09B-NSHSS-TB (mating part: JST # NSHR-09V-S), GPIO cable available as an accessory
Software Platform
Teledyne Lumenera INFINITY ANALYZE 7, supported on both Windows and Mac, supported third-party plug-ins for MetaMorph and MicroManager
Included in the Box
INFINITY Microscope Camera, USB3 Micro-B to Type-A Cable (3 Meter/ 9.75 feet)
INFINITY8-2 (SPECIFICATIONS)
Image Sensor
1.7MP Monochrome Sony IMX432 CMOS sensor
Optical Format
1″; 1x coupler recommended
Active Resolution
1608 x 1104
Frame Rate
Maximum sustainable frame rate of 96fps
Dynamic Range
72db
Bit Depth
8 or 12 bit
Full Well Capacity
100.4K e- in normal mode and 19.2K e- in FLIC mode
Read Noise
21.6 e- in normal mode and 4.4 e- in FLIC mode
Pixel Size
9.0 μm
INFINITY8-3 (SPECIFICATIONS)
Image Sensor
2.9MP Color or Monochrome Sony IMX429 CMOS sensor
Optical Format
2/3″; 0.65x coupler recommended
Active Resolution
1944 x 1472
Frame Rate
Maximum sustainable frame rate of 62fps
Dynamic Range
72db
Bit Depth
8 or 12 bit
Full Well Capacity
24.9K e-
Read Noise
7.2 e-
Pixel Size
4.5 μm
INFINITY8-8 (SPECIFICATIONS)
Image Sensor
8.3MP Color or Monochrome Sony IMX334 CMOS sensor
Optical Format
1/1.8″; 0.5x or 0.65x coupler recommended
Active Resolution
3840 x 2160
Frame Rate
Maximum sustainable frame rate of 44fps
Dynamic Range
73db
Bit Depth
8 or 12 bit
Full Well Capacity
7.03K e-
Read Noise
2.0 e-
Pixel Size
2.0 μm
INFINITY8-9 (SPECIFICATIONS)
Image Sensor
8.9MP Color or Monochrome Sony IMX267 CMOS sensor
Optical Format
1″; 1x coupler recommended
Active Resolution
4112 x 2176
Frame Rate
Maximum sustainable frame rate of 31fps
Dynamic Range
73.3db
Bit Depth
8 or 12 bit
Full Well Capacity
10.6K e-
Read Noise
2.3 e-
Pixel Size
3.45 μm
INFINITY8-20 (SPECIFICATIONS)
Image Sensor
20MP Color Sony IMX183 CMOS sensor
Optical Format
1″; 1x coupler recommended
Active Resolution
5472 x 3648
Frame Rate
Maximum sustainable frame rate of 19.6fps
Dynamic Range
73db
Bit Depth
8 or 12 bit
Full Well Capacity
14.6K e-
Read Noise
3.25 e-
Pixel Size
2.4 μm
